ASC LINK / K0127BB00
availability - Q3 2026

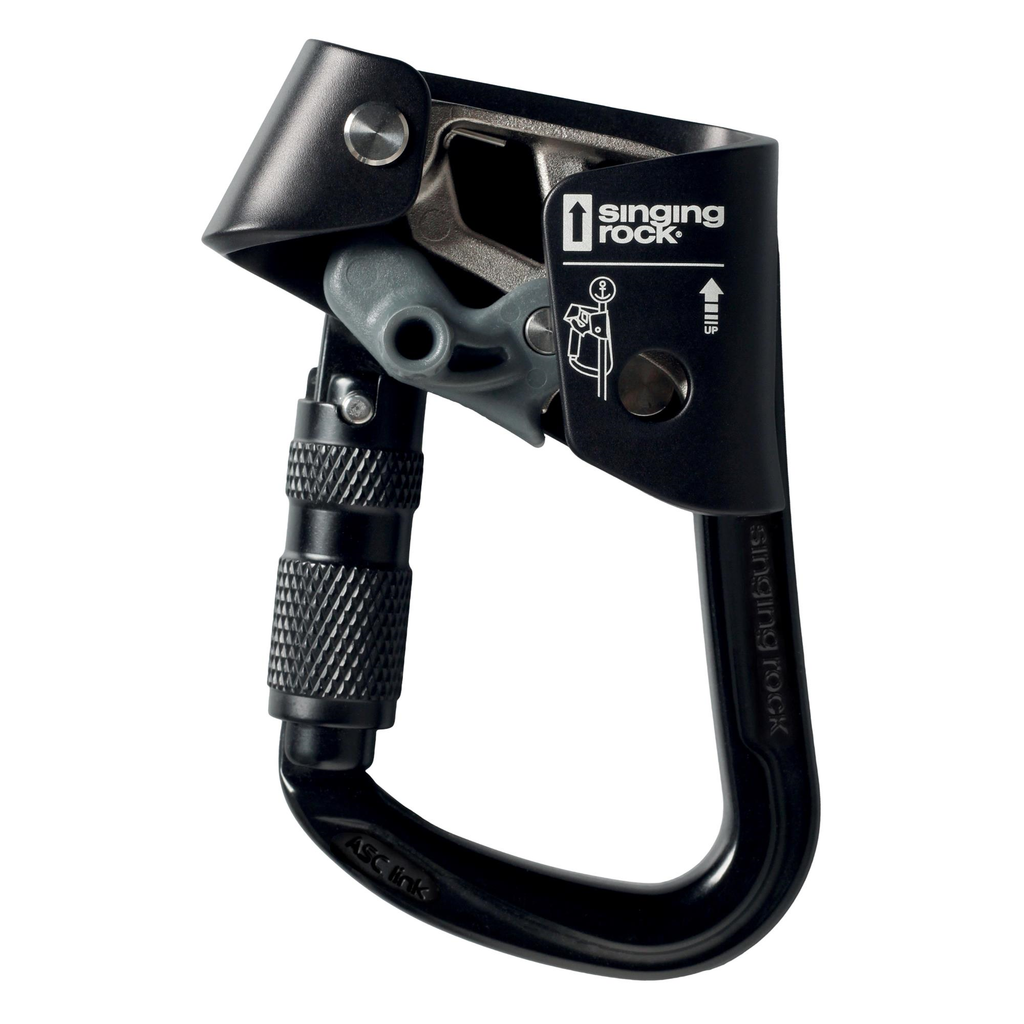

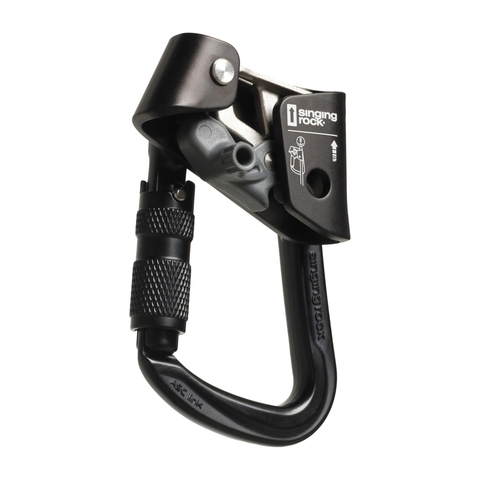

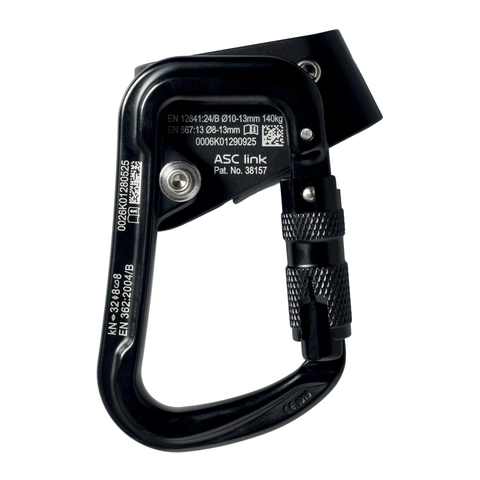

Patented solution that combines the chest ascender and the triple-lock carabiner into one compact unit. This setup provides greater comfort during ascent and ensures easier rope handling. Ideal for safe and comfortable rope ascent.
- ensures a more stable position of the ascender on a harness, so that the ascender does not get in the way or restrict movement
- placement of the ascender close to the attachment point allows faster rope ascent
- elimination of sharp edges prevents strap damage
- allows easy disconnection of the chest and sit parts of the harness
- simple assembly and disassembly with a 3 mm Allen key
- during installation, the ascender is slid onto the carabiner and secured with a retaining screw
- retaining screw is protected against loosening and hidden under the ascender’s safety catch
- when the ascender is removed, the carabiner can be used as an EN 362 connector
- ascender can be replaced on the carabiner with a plastic cover, which is included in the set
- both the ascender and the cover fix the chest strap of the full-body harness in the correct position
- unique serial number for easier traceability and periodic inspection
- For use with ropes of diameter 8 - 13 mm:
- according to EN 12841 ......... with a static rope Ø 10 - 13 mm, max. load 140 kg
- according to EN 567 ............. with a rope Ø 8 - 13 mm
| Color | black matt |
|---|---|
| Weight | 220 g • 7.8 oz |
| Material | light alloy, stainless steel, plastic |
| Strength major axis | 32 kN |
| Strength minor axis | 8 kN |
| Strength open gate | 8 kN |
| Gate opening (d) | 24 mm |
| Max. diameter of rope | 13 mm |
